OLED Menu

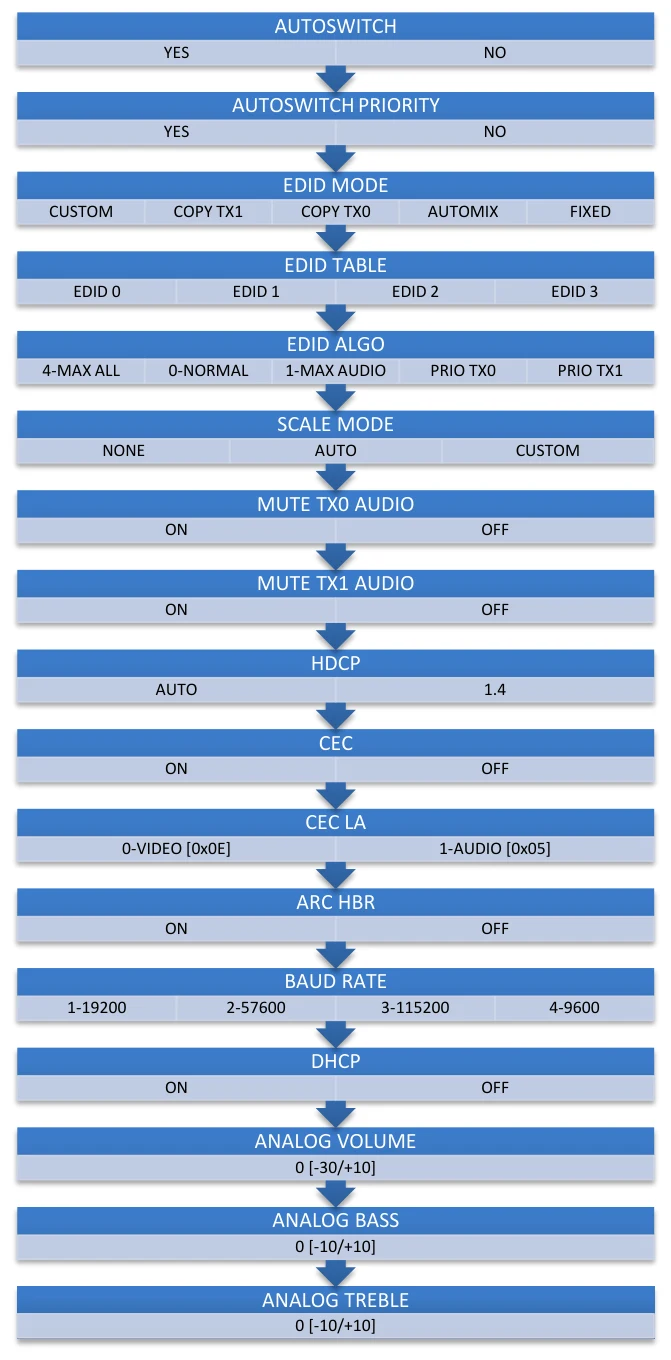

The diagram above shows the complete OLED menu tree. Press MENU once to enter the Vertex² OLED menu, press MENU again to TOGGLE a choice, use UP and DOWN to navigate, and press EXIT (or let the menu idle) to leave.

[Autoswitch] ON/OFF

[Autoswitch Priority] ON/OFF

[EDID Mode] Custom / Copy TX1/Copy TX0/Automix/Fixed

[EDID TABLE] EDID 0/EDID 1/EDID 2/EDID 3

[EDID Algo] 4-Max All / 0-Normal / 1-Max Audio / Prio TX0 / Prio TX1

[SCALE Mode] None / Auto / Custom

[Mute TX0 Audio ] ON / OFF

[Mute TX1 Audio] ON / OFF

[HDCP] AUTO / 1.4

[CEC] ON / OFF

[CEC LA] 0-Video [0x0E] / 1-Audio [0x05]

[ARC HBR] ON/OFF

[Baud Rate] 1-19200 / 2-57600 / 3-115200 / 0-9600

[DHCP] ON/OFF

[Analog Volume] 0 [-30 / +10]

[Analog Bass] 0 [-10 / +10]

[Analog Treble] 0 [-10 / +10]
